StoreFront + FAS: You cannot login using smart card

When you implement StoreFront and NetScaler Gateway with Citrix new Federate Authentication Service (FAS) for SAML authentication you almost inevitable will face the “You cannot login using smart card. Please close your browser to protect your account” error after you logout from StoreFront.

Background

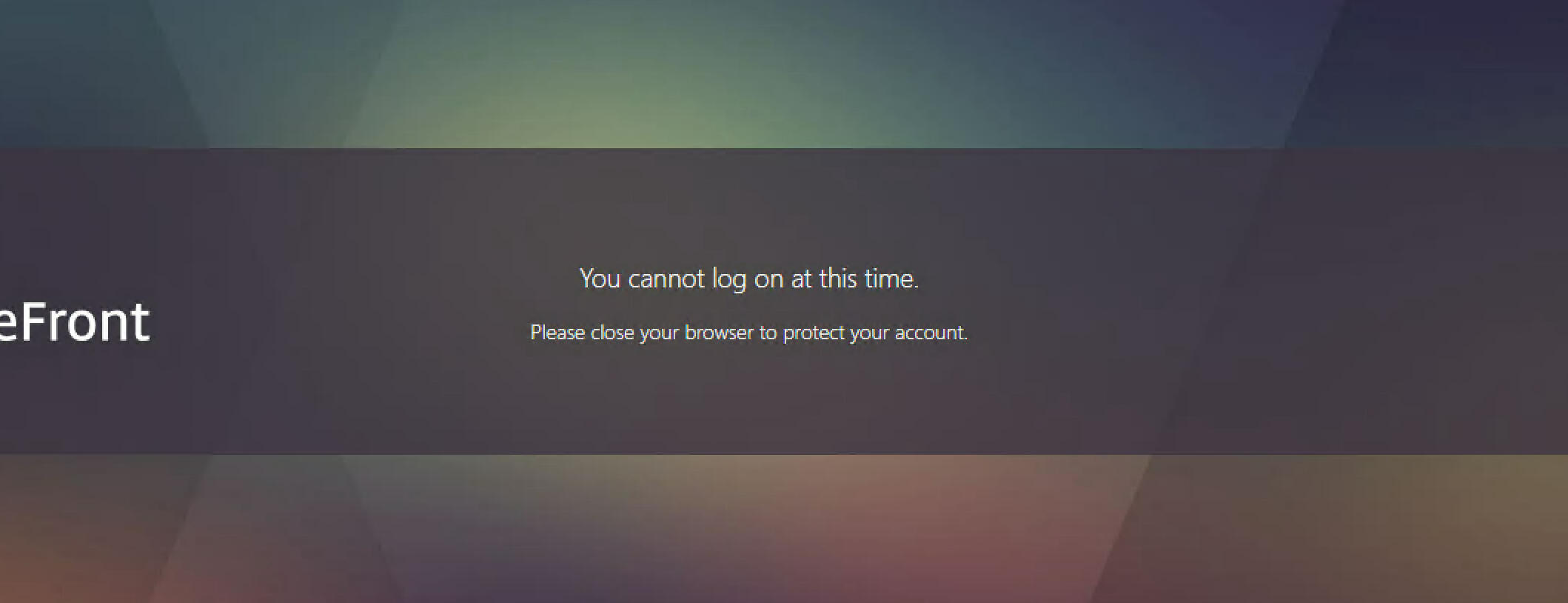

This message typically pops up after you logout. You’ll first receive the following message asking you to close your browser.

StoreFront + FAS: You cannot login using smart card: Close your browser

Once you then refresh the page or browse to the StoreFront again without closing your browser you’ll receive the message “You cannot login using smart card”.

StoreFront + FAS: You cannot login using smart card: Smart card error

While this is an intended protection mechanism the wording is just confusing for users. The basic intention is to make the user close the browser for security purposes. However, the user doesn’t know about the SmartCard tricks FAS is performing internally.

Solution

StoreFront is handling this protection by setting and checking some cookies. And there are actually two cookies, one that’s asking the user to close the browser and one that’s causing the smart card error.

Now if we delete the cookie responsible for the smart card message the user will get the message just telling him to close the browser instead of a misleading “You cannot login using smart card”.

StoreFront + FAS: You cannot login using smart card: Close your browser

We can achieve this on NetScaler using the following simple rewrite on the logout page that’ll invalidate the corresponding cookie:

You’ll need to edit the /Citrix/StoreWeb paths accordingly

add rewrite action rw.act.expire-smartcard-cookie insert_http_header "Set-Cookie" ""CtxsSmartcardAuthenticated=xyz;Path=/Citrix/<strong>StoreWeb</strong>/;expires=Wednesday, 09-Nov-1999 23:12:40 GMT; Secure""
add rewrite policy rw.pol.expire-smartcard-cookie.logout "HTTP.REQ.URL.PATH.SET_TEXT_MODE(IGNORECASE).EQ("/Citrix/<strong>StoreWeb</strong>/logout.aspx")" rw.act.expire-smartcard-cookie
bind vpn vserver ngw.vs.citrix.nerdscaler.lab.ssl.443 -policy rw.pol.expire-smartcard-cookie.logout -priority 100 -gotoPriorityExpression NEXT -type RESPONSE

I’ve noticed that this change doesn’t seem to work with the latest Internet Explorer. This seems to be due to the fact that the logout.aspx is called from within a JavaScript and the browser itself never navigates to that site. IE receives the Cookie expiration but doesn’t seem to react to it within JavaScript.

Optional

If you want to get rid of the browser close message as well you can also remove the cookie causing this. You can do this using the following rewrite.

add rewrite action rw.act.expire-browserclose-cookie insert_http_header "Set-Cookie" ""CtxsBrowserCloseToEndSession=xyz;Path=/Citrix/<strong>StoreWeb</strong>;expires=Wednesday, 09-Nov-1999 23:12:40 GMT; Secure""
add rewrite policy rw.pol.expire-browserclose-cookie.logout "HTTP.REQ.URL.PATH.SET_TEXT_MODE(IGNORECASE).EQ("/Citrix/<strong>StoreWeb</strong>/logout.aspx")" rw.act.expire-browserclose-cookie
bind vpn vserver ngw.vs.citrix.nerdscaler.lab.ssl.443 -policy rw.pol.expire-browserclose-cookie.logout -priority 110 -gotoPriorityExpression NEXT -type RESPONSE

Warning: StoreFront forces the user to close the session for a reason. The browser closure prevents situations where you logout from StoreFront but not from the IDP.

Let’s say you’re using a shared computer. You log off your StoreFront and you don’t close the browser. Chances are you’re still logged into your IDP at this stage. Now if the next user browses to StoreFront he’ll get logged into your account straight away as you’re still authenticated with the IDP.

4 Replies to “StoreFront + FAS: You cannot login using smart card”

  1. Hi,

    This solution does only work with Chrome at the moment. Both IE and Firefox does not delete the CtxsSmartcardAuthenticated cookie. Is there any other way to force removal of this cookie? For example a redirect to anoter web-page that invalidates the cookie?

    Regards
    Alexander

    Like

    1. Yes, I’ve noticed that as well.

      I’ve tried redirects but one problem with them is that the whole StoreFront website is only AJAX calls. Including the logoff. So the logoff is just client-side JS calling one website. And if you give JS a redirect it won’t happen.

      One other option I thought about is actually re-writing StoreFronts JS logic and hook into the functions behind the logout process and delete the cookies from there. But that’s a lot of reverse-engineering and I haven’t had the patience and time for that yet.

      Manuel

      Like

  2. It should be: “CtxsSmartcardAuthenticated=xyz;Path=/Citrix/StoreWeb/;

    If you use the “/” at the end because the CtxsSmartcardAuthenticated cookie created by StoreFront will be bind to the /Citrix/StoreWeb/ path instead of without the slash. It works for IE,Edge, Chrome & FireFox

    Like
